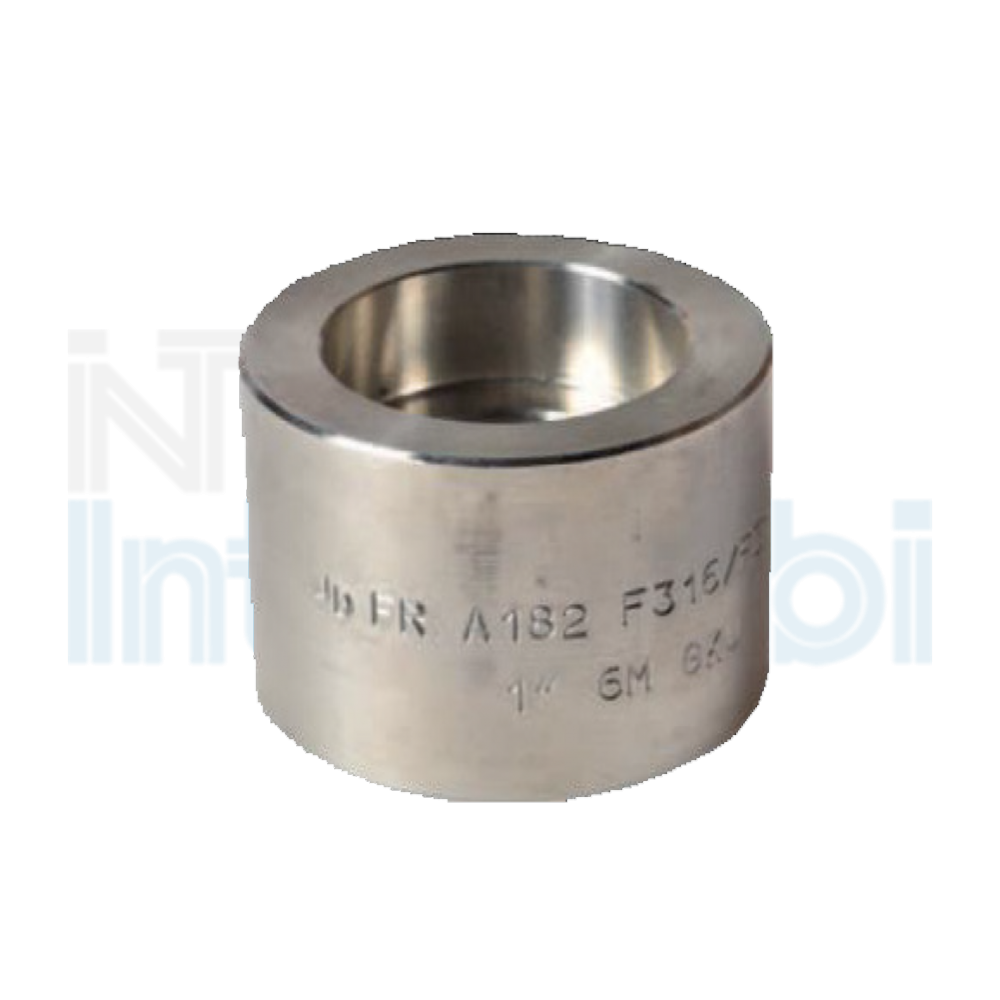

HALF-COUPLINGS S.W.

ANSI B16.11
3000 - 6000 LBS

mman_sw

HALF-COUPLINGS S.W.

ANSI B16.11
3000 - 6000 LBS

Diam. nominale

Nominal pipe size

Coste di montaggio / Laying lengths

Manicotti / Couplings - E

Mezzi manicotti / Half couplings - F

3000

6000

Tolleranze ±

Tolerances ±

3000

6000

Tolleranze ±

Tolerances ±

mm

inches

mm

inches

mm

inches

mm

inches

mm

inches

mm

inches

1/4"

6.5

0.25

6.5

0.25

1.5

0.06

16.0

0.62

16.0

0.62

1.0

0.03

3/8"

6.5

0.25

6.5

0.25

3.0

0.12

17.5

0.69

17.5

0.69

1.5

0.06

1/2"

9.5

0.38

9.5

0.38

3.5

0.12

22.5

0.88

22.5

0.88

1.5

0.06

3/4"

9.5

0.38

9.5

0.38

3.5

0.12

23.5

0.94

23.5

0.94

1.5

0.06

1"

13.0

0.50

13.0

0.50

4.0

0.16

29.0

1.12

29.0

1.12

2.0

0.08

1 1/4"

13.0

0.50

13.0

0.50

4.0

0.16

30.0

1.19

30.0

1.19

2.0

0.08

1 1/2"

13.0

0.50

13.0

0.50

4.0

0.16

32.0

1.25

32.0

1.25

2.0

0.08

2"

19.0

0.75

19.0

0.75

4.0

0.16

41.0

1.62

41.0

1.62

2.0

0.08

2 1/2"

19.0

0.75

19.0

0.75

5.0

0.20

42.5

1.69

42.5

1.69

2.5

0.10

3"

19.0

0.75

19.0

0.75

5.0

0.20

44.5

1.75

44.5

1.75

2.5

0.10

4"

19.0

0.75

19.0

0.75

5.0

0.20

47.5

1.88

47.5

1.88

2.5

0.10
